| 室内全彩LED显示屏一体机 高清小间距前维护600mm*337.5mm箱体参数 |
|||
| 项目 Item | PH1.25 | PH1.5625 | PH1.875 |
| 产品型号 Model Number | PH1.25-30S | PH1.5625-32S | PH1.875-30S |

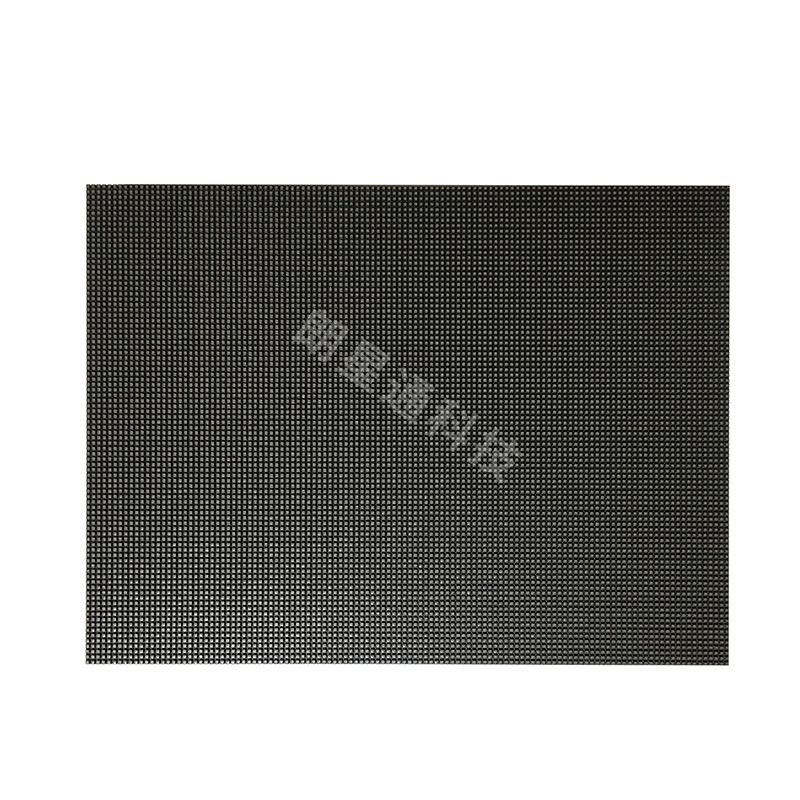

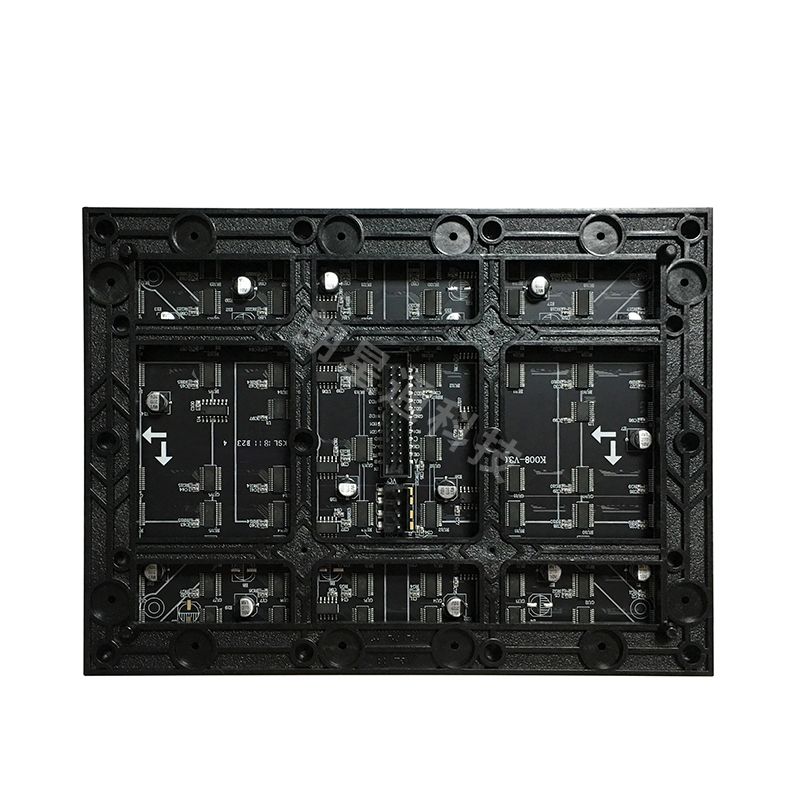

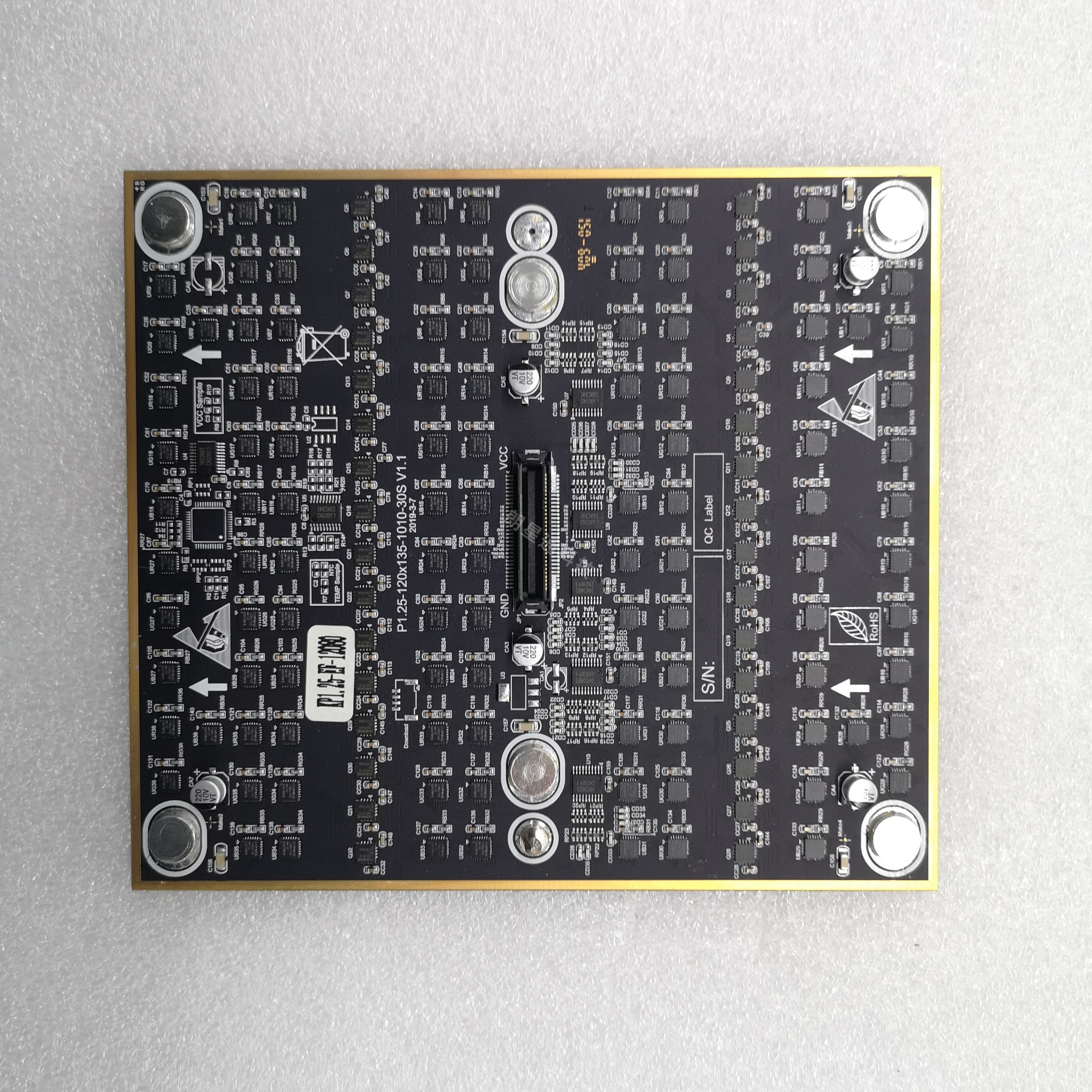

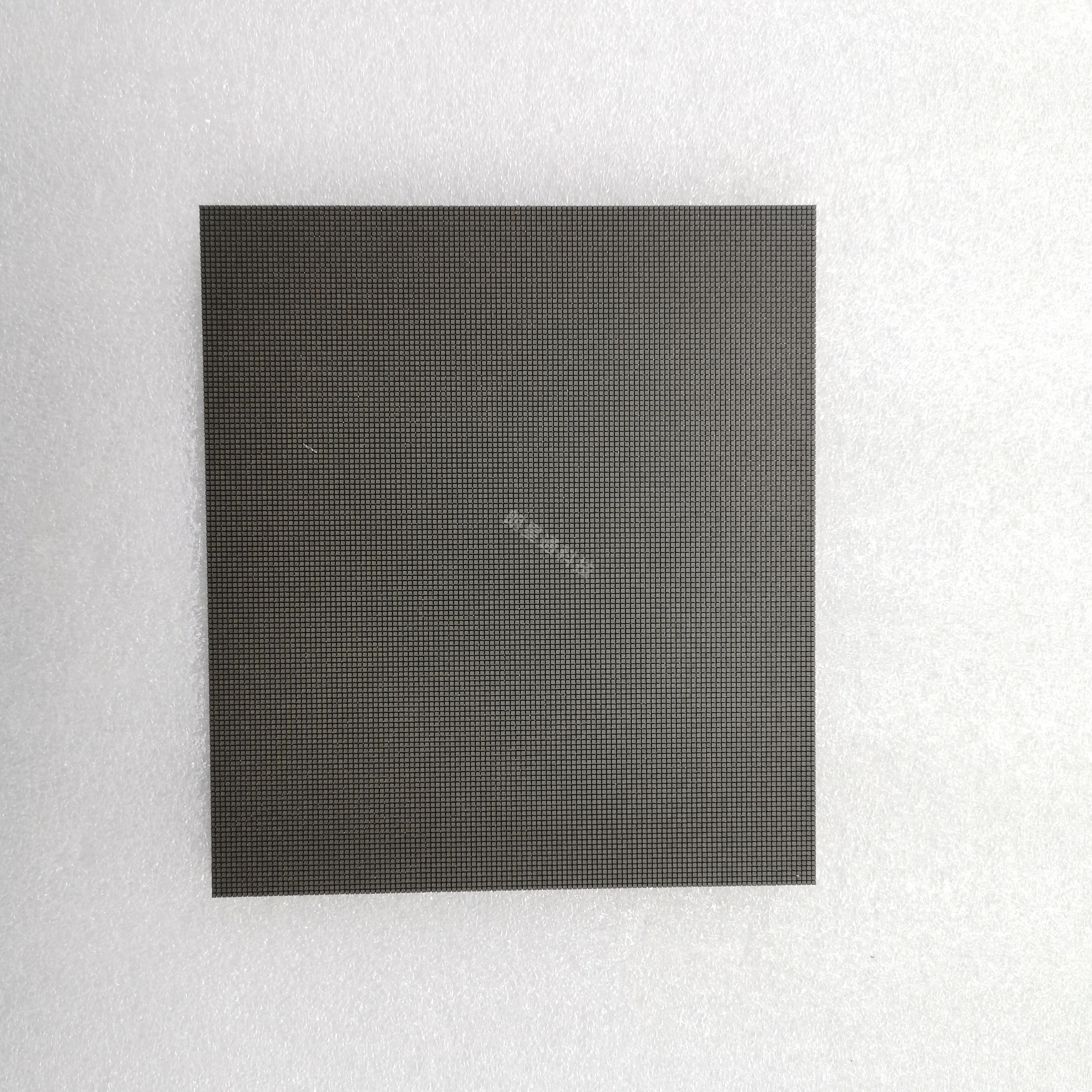

| 模组尺寸 Module size | 150mm*168.75mm | 150mm*168.75mm | 150mm*168.75mm |
| 物理点间距 Pixel pitch | 1.25mm | 1.5625mm | 1.875mm |
| 物理密度 Pixels Density | 640000点/㎡ | 409600点/㎡ | 284089点/㎡ |
| 发光点颜色 Pixel configuration | 1R1G1B | 1R1G1B | 1R1G1B |
| LED封装 Package mode | SMD1010 | SMD1010/SMD1212 | SMD1515 |
| 防护面罩 Face shield | There is no | 选配optional | There is no |
| 模组分别率 Pixel resolution | 120dots(W)*135dots(H) | 96dots(W)*108dots(H) | 80dots(W)*90dots(H) |
| 模组最大功耗 Max Power | 15-20W | 15-20W | 15-20W |
| 模组厚度 Module thickness | 2.5mm | 2.5mm | 2.5mm |
| 模组重量 Weight | 0.3-0.35KG | 0.3-0.35KG | |
| 驱动方式 Drive type | 恒流驱动Constant drive | 恒流驱动Constant drive | 恒流驱动Constant drive |
| 扫描方式 Scan mode | 1/30scan | 1/32scan | 1/30scan |
| 白平衡亮度 Brightness of white balance | ≥300-600cd/㎡(adjustable) | ≥400-800cd/㎡(adjustable) | ≥400-800cd/㎡(adjustable) |
| 色度均匀性 Chromatic uniformity | Within 0.003Cx, Cy | Within 0.003Cx, Cy | Within 0.003Cx, Cy |

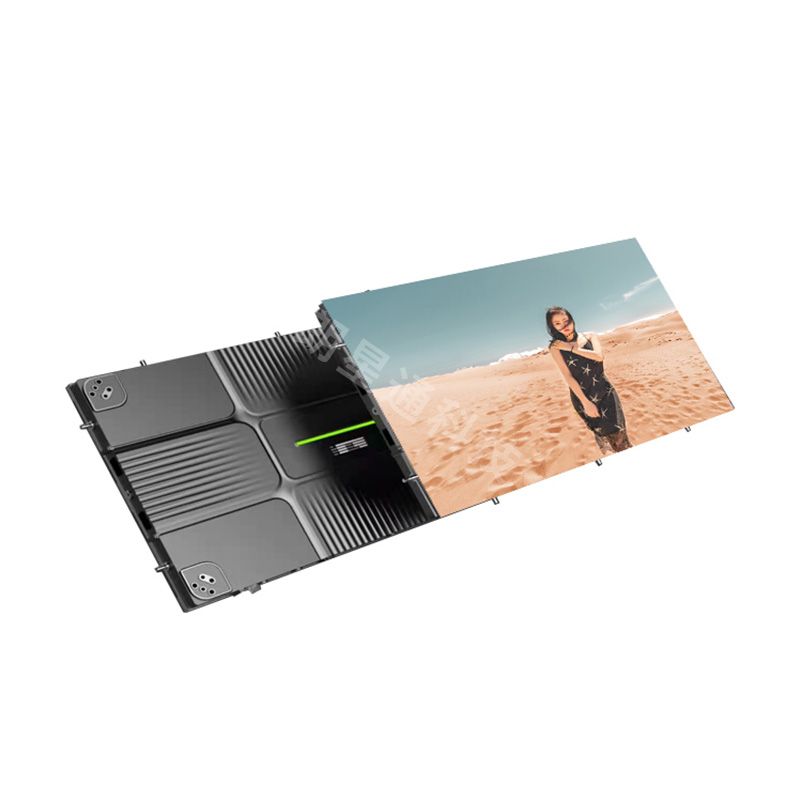

| 箱体尺寸 Dimension | 600mm*337.5mm | 600mm*337.5mm | 600mm*337.5mm |
| 箱体模组数量 Number of modules per box | 8pcs | 8pcs | 8pcs |
| 供电方式 Module supply voltage | 4.2V-5V（optional） | 4.2V-5V（optional） | 4.2V-5V（optional） |
| 维护方式：Maintenance mode | Repair and maintenance at the front | Repair and maintenance at the front | Repair and maintenance at the front |
| 模组连接方式：Module connection mode | Ribbon cable connection | Ribbon cable connection | Ribbon cable connection |
| 箱体分辨率 Pixel per cabinet | 480dots(W)*270dots(H) | 384dots(W)*216dots(H) | 320dots(W)*180dots(H) |
| 最佳视角 Best viewing angle | Horizontal 120° Vertical 120° | Horizontal 120° Vertical 120° | Horizontal 120° Vertical 120° |
| 环境温度 Temperature | 存贮storage:-25℃～+60℃ | 存贮storage:-25℃～+60℃ | 存贮storage:-25℃～+60℃ |
| 工作working:-20℃～+50℃ | 工作working:-20℃～+50℃ | 工作working:-20℃～+50℃ | |
| 相对湿度 Relative humidity | 10%-75% | 10%-75% | 10%-75% |
| 箱体厚度 Thickness | 60-65mm | 60-65mm | 60-65mm |
| 工作电压 Working voltage | AC：110-220V±10%；50-60HZ | AC：110-220V±10%；50-60HZ | AC：110-220V±10%；50-60HZ |
| 平均功耗 Average Power consumption | <250-350W/㎡ | <150-250W/㎡ | <150-250W/㎡ |
| 最大功耗 Max.Power consumption | <700W/㎡ | <400W/㎡ | <400W/㎡ |
| 节能模式 Energy saving mode | 选配optional | 选配optional | 选配optional |
| 操作系统 Operation system | Win7/Win98/me/2000/NT/XP | Win7/Win98/me/2000/NT/XP | Win7/Win98/me/2000/NT/XP |
| 控制方式 Control method | 同步控制Synchronization | 同步控制Synchronization | 同步控制Synchronization |
| 匹配接收卡 Matching receiving card | Novastar/Colorlight | Novastar/Colorlight | Novastar/Colorlight |
| 信号输入 Signal input | HDMI/DVI/SDI(Extensible interface) | HDMI/DVI/SDI(Extensible interface) | HDMI/DVI/SDI(Extensible interface) |
| 驱动器件 Driving device | Constant drive IC 恒流驱动 | Constant drive IC 恒流驱动 | Constant drive IC 恒流驱动 |
| 刷新频率 Refresh frequency | >3840HZ | >3840HZ | >3840HZ |
| 灰度/颜色 Grey scale/colors | 15BIT | 15BIT | 15BIT |
| Red,Green and Blue 256 Grade/Each | Red,Green and Blue 256 Grade/Each | Red,Green and Blue 256 Grade/Each | |
| 平均无故障时间 MTBF | >7*24hours | >7*24hours | >7*24hours |
| 电源开关 Power switch | 自动开关Automatic switch | 自动开关Automatic switch | 自动开关Automatic switch |

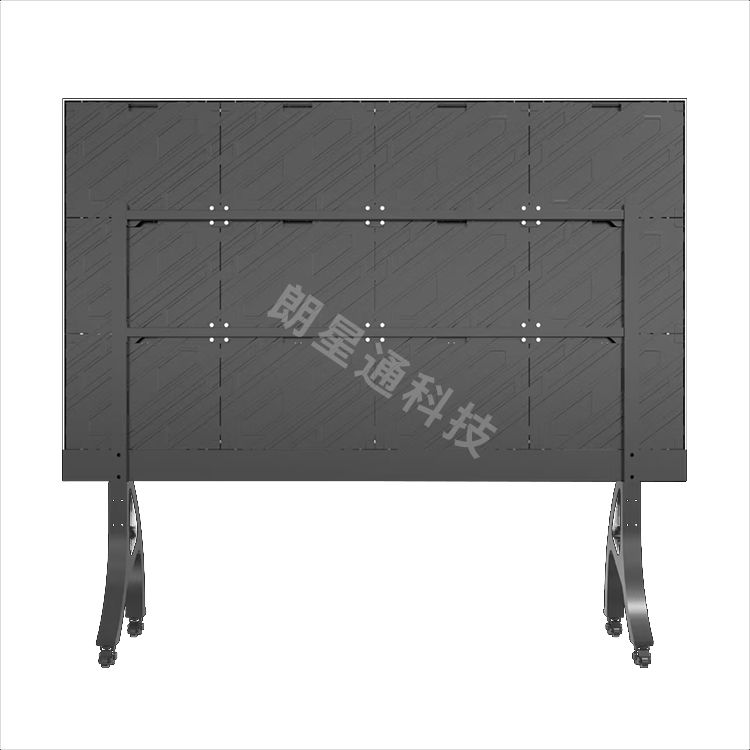

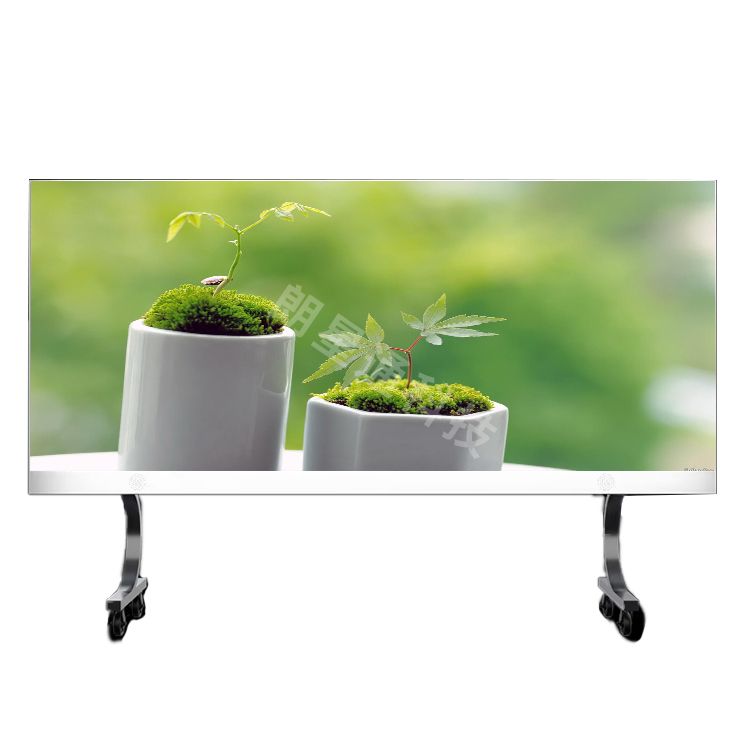

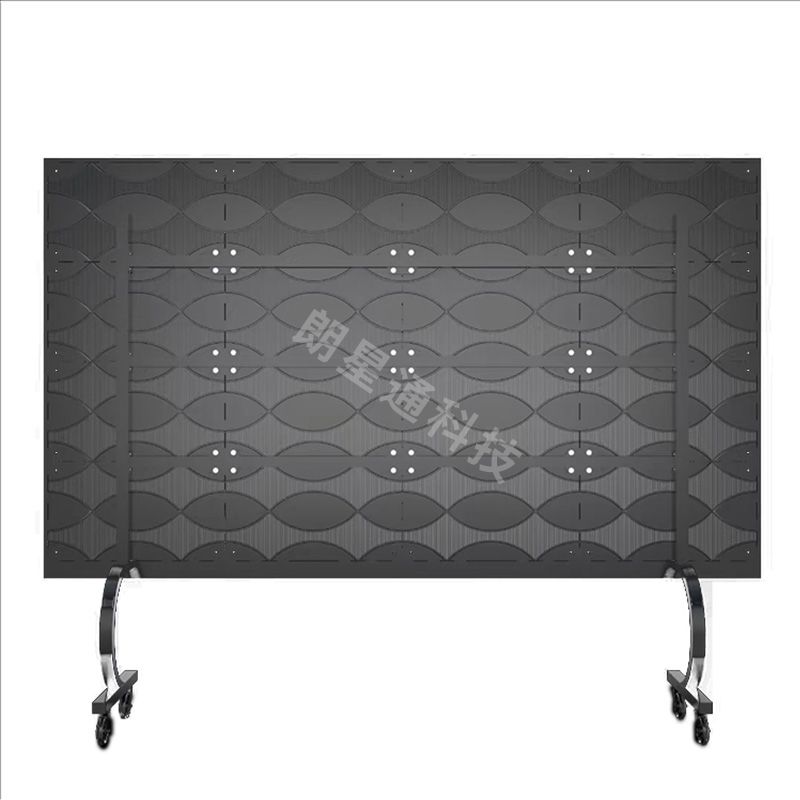

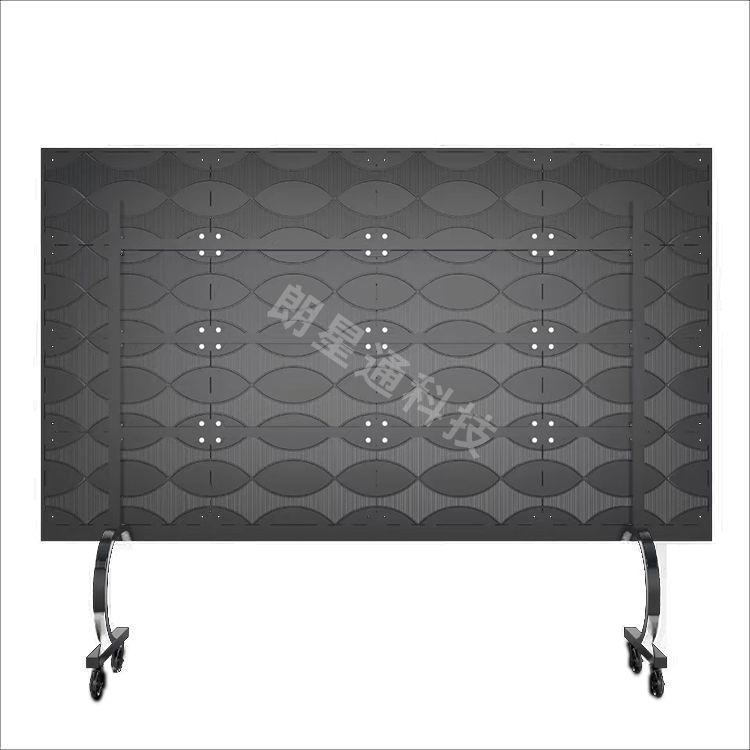

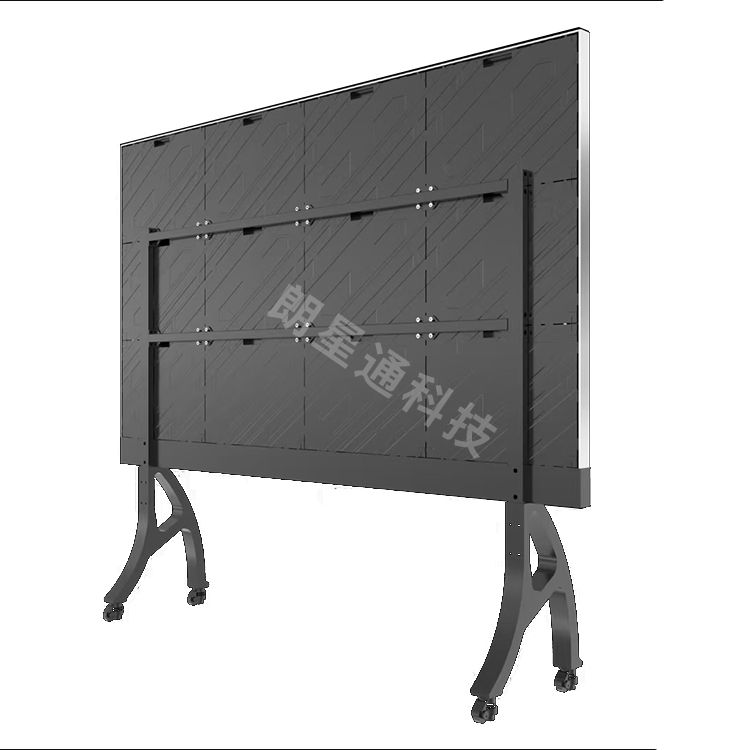

| 安装模式 The installation mode | 1、Back bracket installation 2、Stick a wall installation |
1、Back bracket installation 2、Stick a wall installation |
1、Back bracket installation 2、Stick a wall installation |
