交通诱导室外显示系统一般由室外LED显示屏、主指挥中心控制系统（分指挥中心控制系统）、通讯系统等部分组成。室外显示屏通过有线或无线方式连接到主中心或分指挥中心的通讯服务器。根据交通诱导信息室外显示系统要实现的功能，系统总体采用分布式多级控制方式。能够接受主中心、分中心、本地三级控制。
应用范围：
1、高速公路
2、城市道路
3、市区公路
4、码头港口
5、机场车站
6、接驳中心
产品优势
1、交通诱导屏，为驾驶人员提示目前的道路路况信息，发布友情提示信息。
2、避免驾驶人员因路况不熟走错，交通阻塞，减少交通事故
3、交通部门根据前方路况情况及时发布提示信息
4、通过和在线地图大数据实时对接，提前为车辆提供和规划最佳的交通信息。
5、显示系统可以自动调节LED显示屏亮度，节能环保，大大减少运营成本

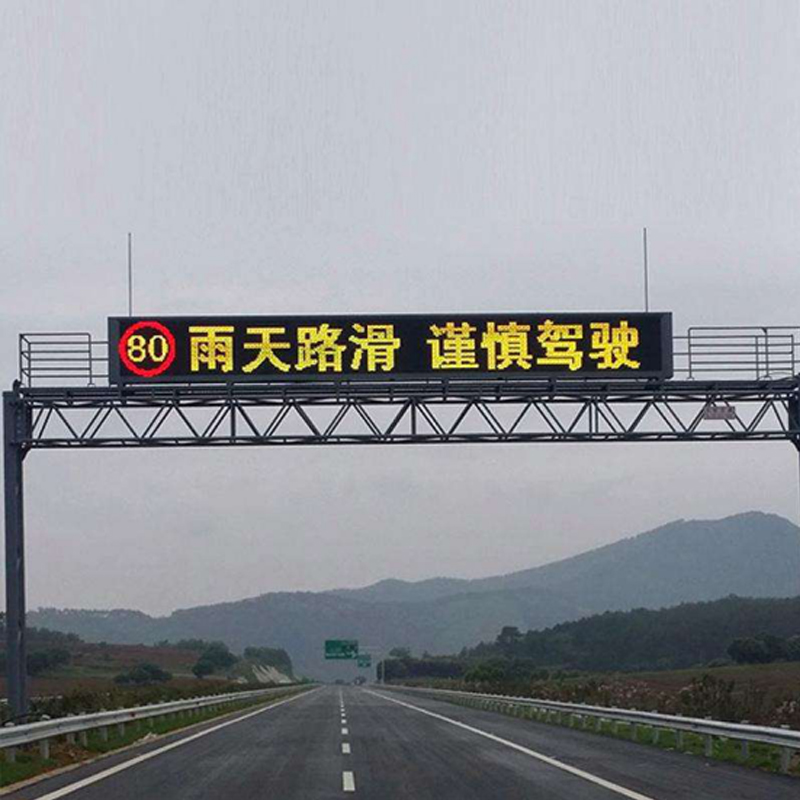

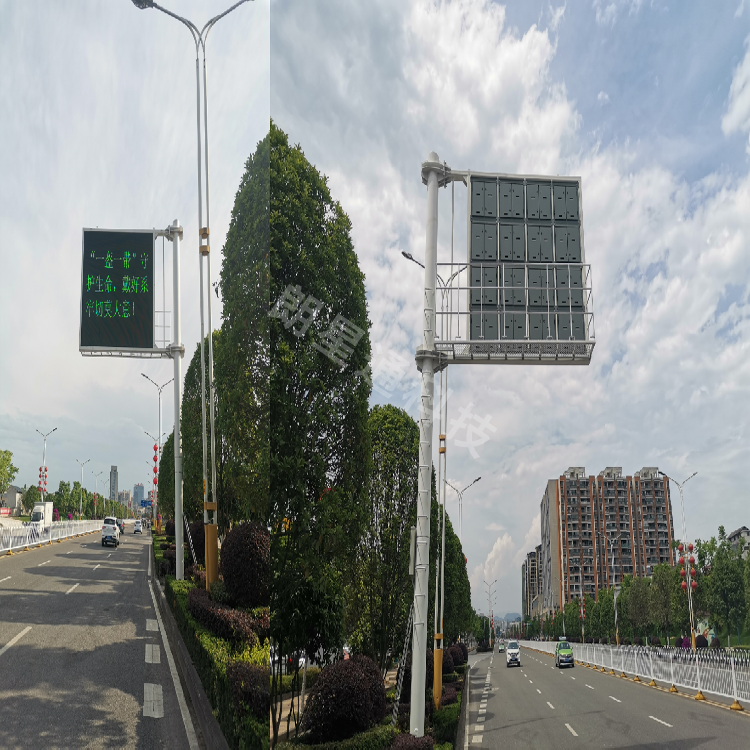

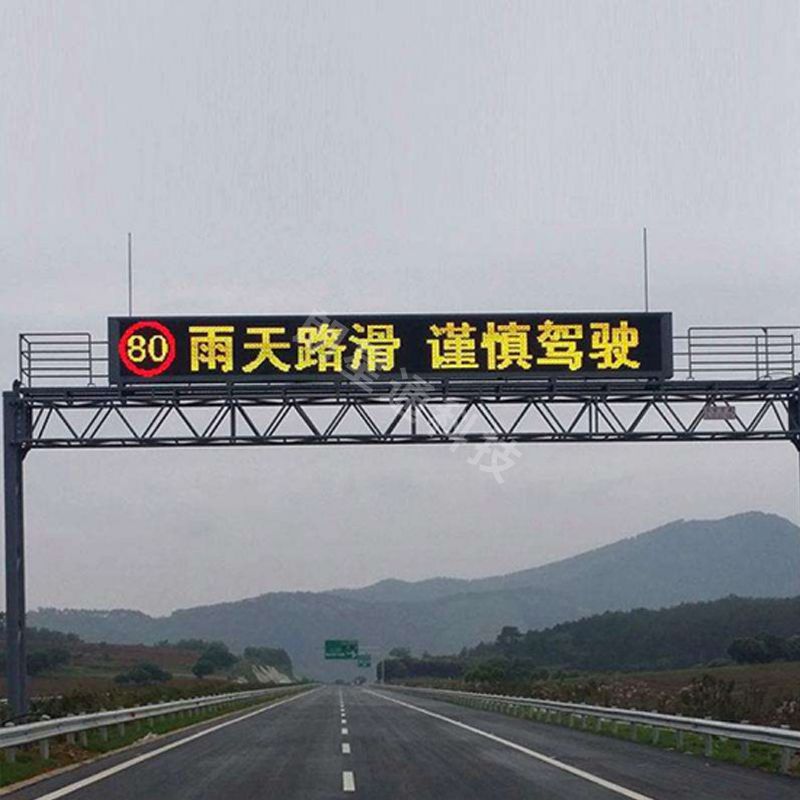

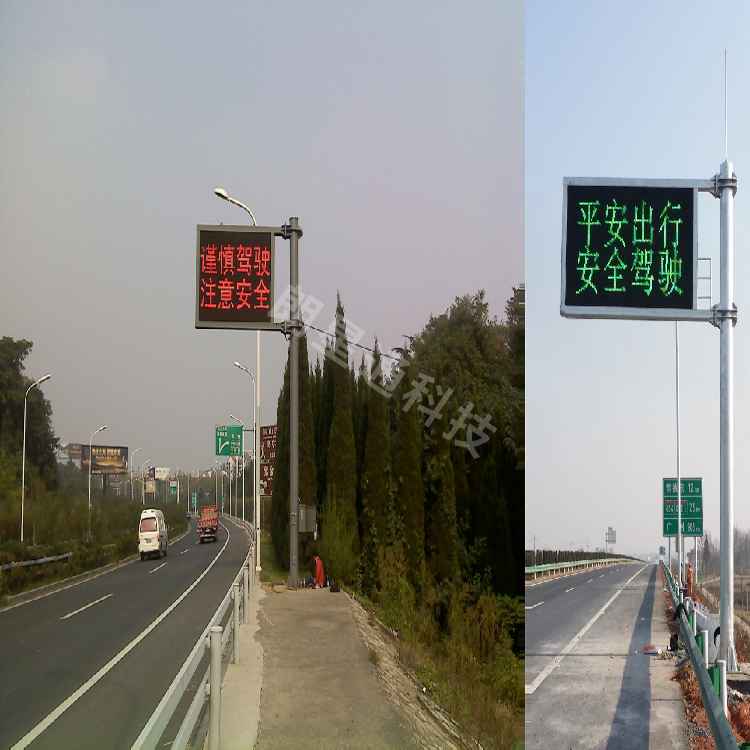

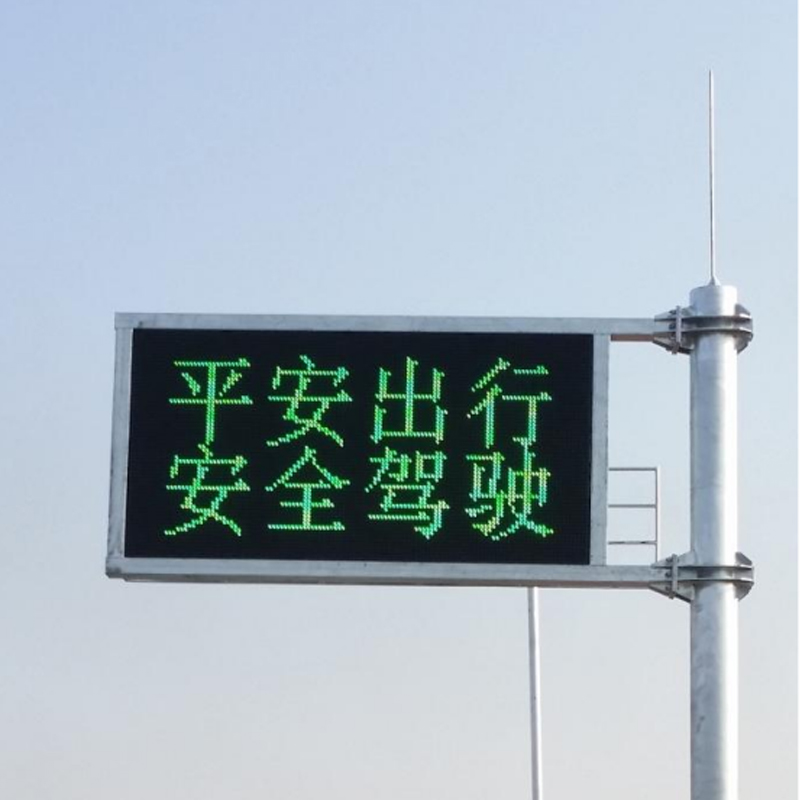

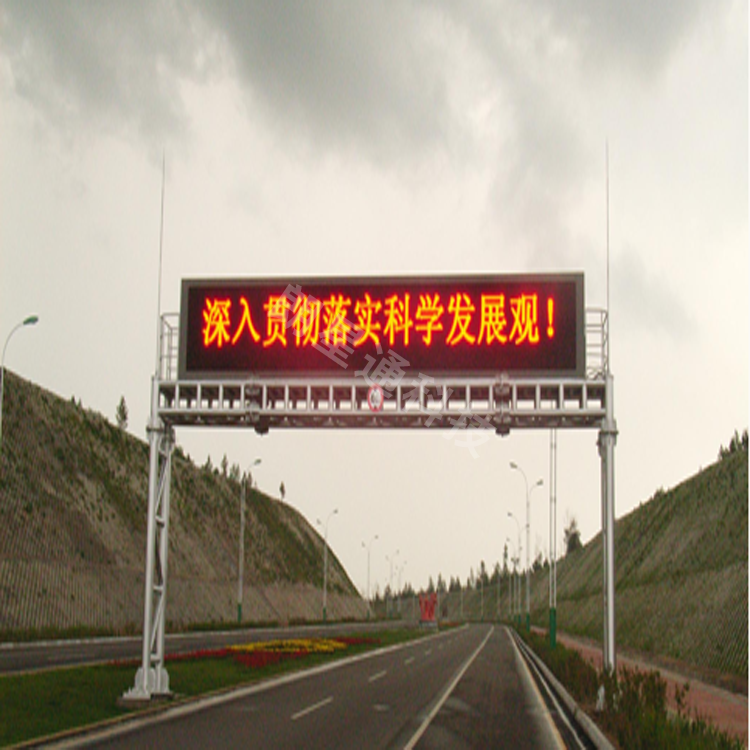

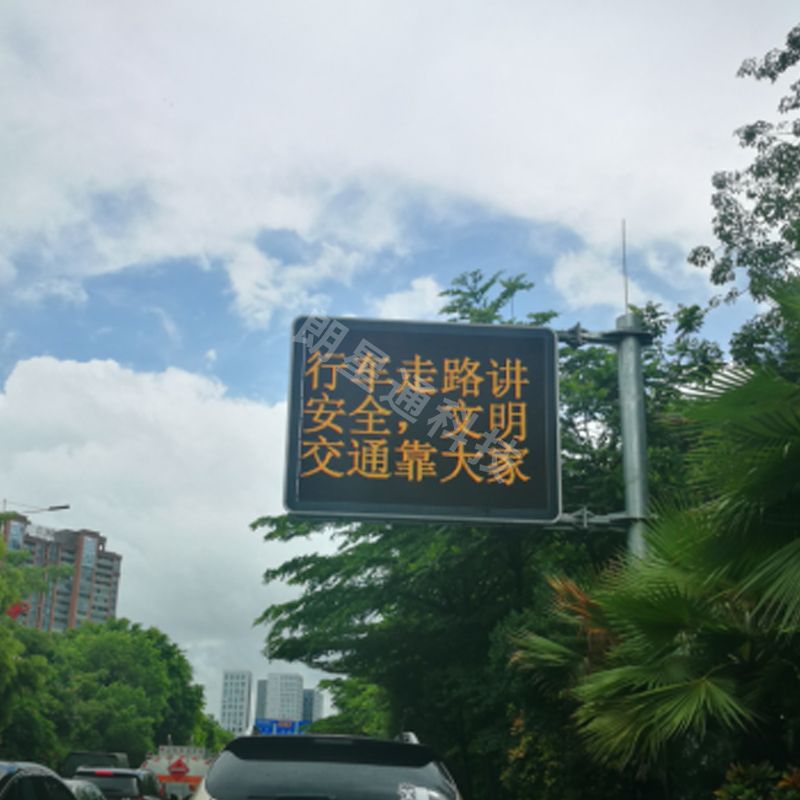

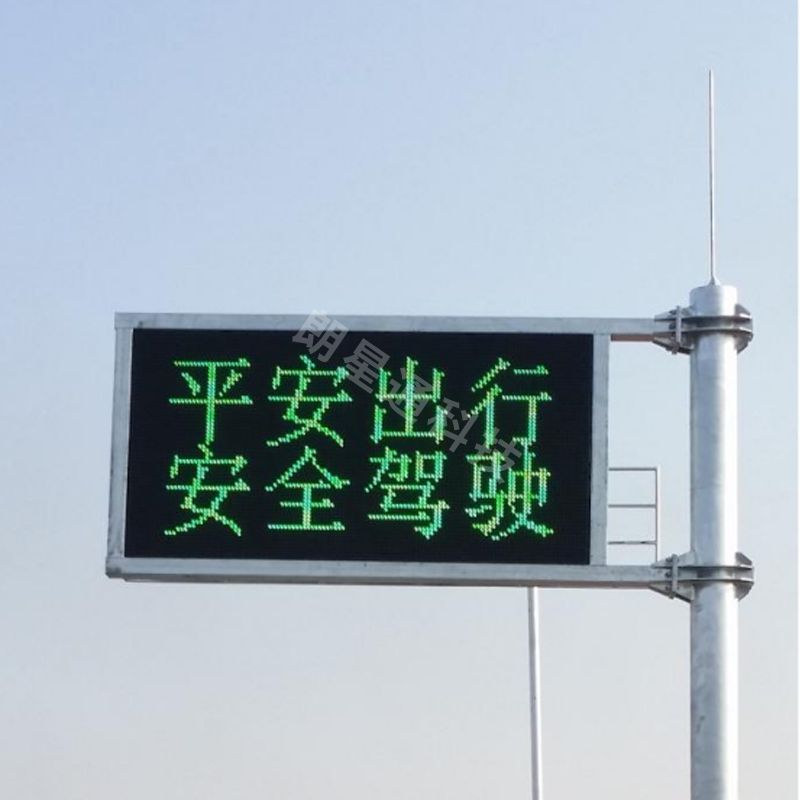

案例展示：
案例展示：
| Outdoor traffic guide screen | ||||||

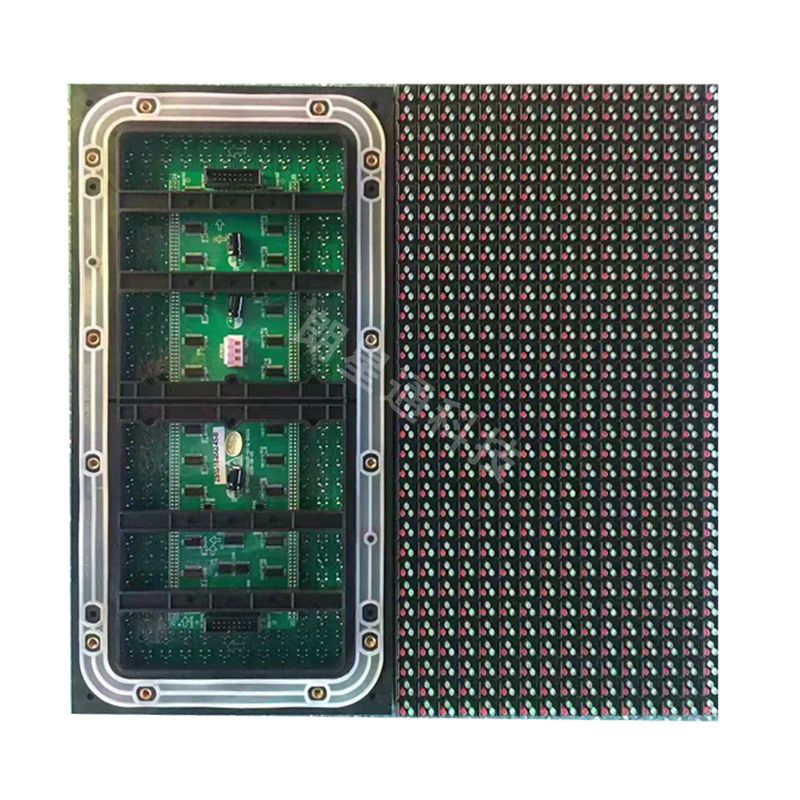

| Module Specifications | ||||||
| 1 | Pixel Pitch | PH10 | PH12 | PH16 | PH20 | |
| 2 | Lamp | DIP346 | DIP346 | DIP346 | DIP504 | |
| 3 | Pixel Configuration | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B | |
| 4 | Module Resolution | 32pixels * 16pixels | 16pixels * 16pixels | 16pixels * 16pixels | 16pixels * 8pixels | |
| 5 | Module Pixles | 512pixels | 256pixels | 256pixels | 128pixels | |
| 6 | Module Size | 320mm * 160mm | 192mm * 192mm | 256mm * 256mm | 320mm * 160mm | |
| Cabinet Specifications | ||||||
| 1 | Cabinet Size(W*H*D) | 960(L)*960(H)*120(D)mm | 960(L)*960(H)*120(D)mm | 1024(L)*1024(H)*120(D)mm | 960(L)*960(H)*120(D)mm | |
| 2 | Cabinet Resolution | 96pixels * 96pixels | 80pixels * 80pixels | 64pixels * 64pixels | 48pixels * 48pixels | |
| 3 | Module Quanity | 18PCS | 25PCS | 16PCS | 18PCS | |
| 4 | Cabinet Pixels | 9516pixels | 6400pixels | 4096pixels | 2304pixels | |
| 5 | Pixel Density | 10000pixels/㎡ | 6944pixels/㎡ | 3906pixels/㎡ | 2500pixels/㎡ | |
| 6 | Average Power Consumption | 150--300W/㎡ | 150--300W/㎡ | 150--300W/㎡ | 150--300W/㎡ | |
| 7 | Max. Power Consumption | 600-750W/㎡ | 600-750W/㎡ | 600-750W/㎡ | 600-750W/㎡ | |
| 8 | Material | Iron | Iron | Iron | Iron | |
| 9 | Cabinet Weight | 42--48kgs | 42--48kgs | 42--48kgs | 42--48kgs | |
| Screen Parameters | ||||||
| 1 | Screen Area | |||||
| 2 | Whole Screen Resolution | |||||
| 3 | Cabinet Quantity | |||||
| 4 | Brightness | ≥7500cd/㎡ | ≥7500cd/㎡ | ≥7500cd/㎡ | ≥7500cd/㎡ | |
| 5 | Contrast | 2000:1 | 2000:1 | 2000:1 | 2000:1 | |
| 6 | Driving Method | 1/4scan | 1/4scan | Static drive | Static drive | |
| 7 | View Angle | Horizontal 100° Vertical 100° | Horizontal 100° Vertical 100° | Horizontal 100° Vertical 100° | Horizontal 100° Vertical 100° | |
| 8 | Optimal Viewing Distance | 10m-200m | 10m-200m | 10m-200m | 10m-200m | |
| 9 | Brightness Control | Red,Green and Blue 256 Grade/Each | Red,Green and Blue 256 Grade/Each | Red,Green and Blue 256 Grade/Each | Red,Green and Blue 256 Grade/Each | |
| 10 | Fresh requency | ≥1920--3840Hz | ≥1920--3840Hz | ≥1920--3840Hz | ≥1920--3840Hz | |
| 11 | Input Voltage | AC220V/50Hz or AC110V/60Hz | AC220V/50Hz or AC110V/60Hz | AC220V/50Hz or AC110V/60Hz | AC220V/50Hz or AC110V/60Hz | |
| 12 | MTBF | >5,000 hours | >5,000 hours | >5,000 hours | >5,000 hours | |
| 13 | Life Span | ≥100,000 hours | ≥100,000 hours | ≥100,000 hours | ≥100,000 hours | |
| 14 | Protective Grade | IP65/IP54(front/back) | IP65/IP54(front/back) | IP65/IP54(front/back) | IP65/IP54(front/back) | |
| 15 | Temperature-operating | ﹣25℃～+60℃ | ﹣25℃～+60℃ | ﹣25℃～+60℃ | ﹣25℃～+60℃ | |
| 16 | Humidity-operating | 10%～95% | 10%～95% | 10%～95% | 10%～95% | |
| 17 | Operating System | Win7 above operating system | Win7 above operating system | Win7 above operating system | Win7 above operating system | |
